Description

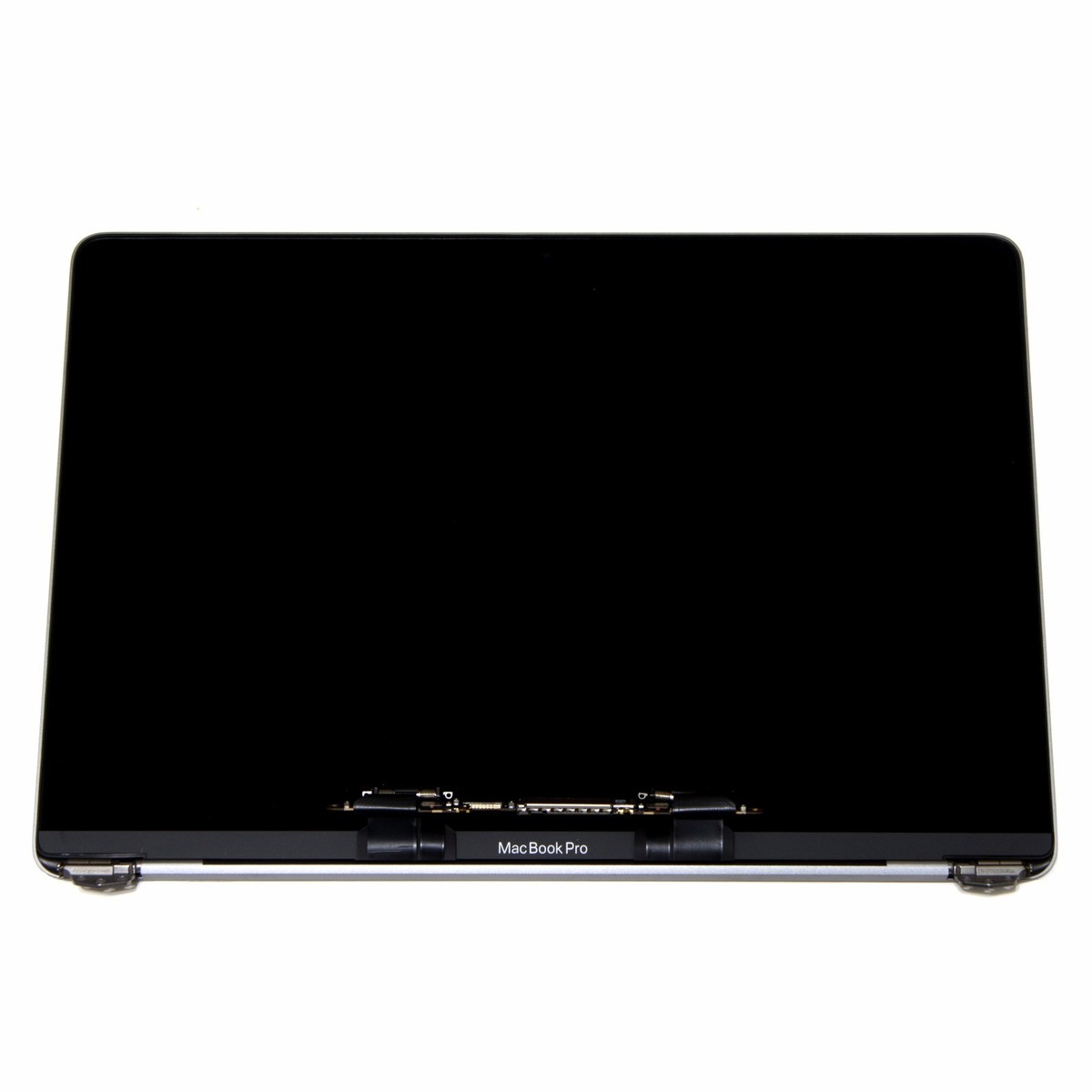

A 13.3-inch Retina IPS display manufactured by LG Display for the Apple MacBook Pro 13-inch A1708 (without Touch Bar, 2016-2017), delivering 2560×1600 Retina resolution at 500 nits of peak brightness — a 67% brightness increase over the 2015 A1502 panel — enabling comfortable outdoor use in direct sunlight and providing P3 wide colour gamut coverage that was introduced with the 2016 MacBook Pro generation for more accurate colour representation in photography and video work. The LP133QD1-SPA1 is fully laminated to the cover glass using Apple’s optical bonding process, and the panel’s True Tone colour temperature adaptation circuitry interfaces with the ambient light sensor system to automatically adjust white balance across varying lighting environments. Replacement of this panel requires careful thermal separation of the bonded glass assembly, and the display cable must follow Apple’s precise routing pattern within the ultra-slim 14.9mm lid to maintain electromagnetic compliance with the integrated Wi-Fi and Bluetooth antenna system.

• Screen Size: 13.3″
• Resolution: 2560 x 1600 (Retina)
• Panel Type: IPS
• Brightness: 500 nits
• Backlight: LED
• Surface: Glossy / Laminated
• Connector: 30-pin eDP (Apple proprietary routing)

Compatible Models: MacBook Pro 13″ A1708 Late 2016 Mid 2017 MPXQ2 MPXT2
